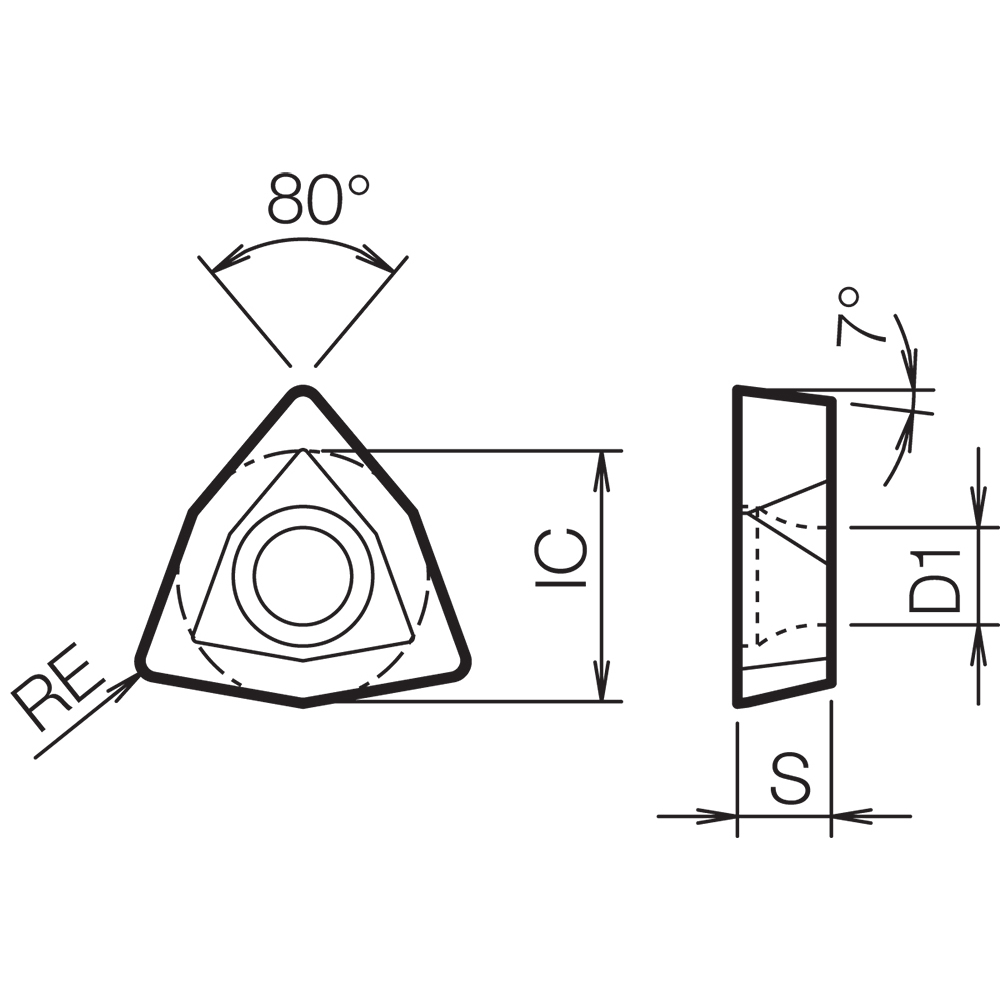

Insert Thickness (S) | 0.1252″ | Applicable Material | Steel | Stainless Steel |
Insert Included Angle (EPSR) | 80 Degrees | Chip Breaker Type | M1 |
Inscribed Circle Diameter (IC) | 5/16″ | Series/List # | Holeshot Drill & Coremaster Coredrill |
Corner Radius (RE) | 1/32″ | Cutting Edge Material | Cermet |
Fixing Hole Diameter (D1) | 0.125″ | Number of Cutting Edges | 3 |

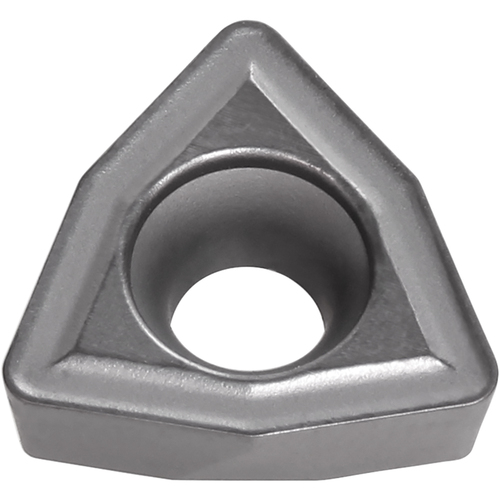

Shape | Trigon | Measurement Type | Inch |
Coating | TiCN/NbC | Cutting Direction (HAND) | Right Hand |
Grade | TN60 | Insert Style | WCMX |
Application | Drilling | Insert Size | 50308 |
