Thread Standard | Metric | UN | Cutting Direction (HAND) | Right Hand |
Thread Pitch (TP) | External 0.75 mm - 2.5 mm | Internal 1 mm - 2.75 mm | Application | External Threading | Internal Threading |
Threads per Inch (TPI) | External 10-44 | Internal 9-24 | Applicable Material | Super-Alloys / Titanium |

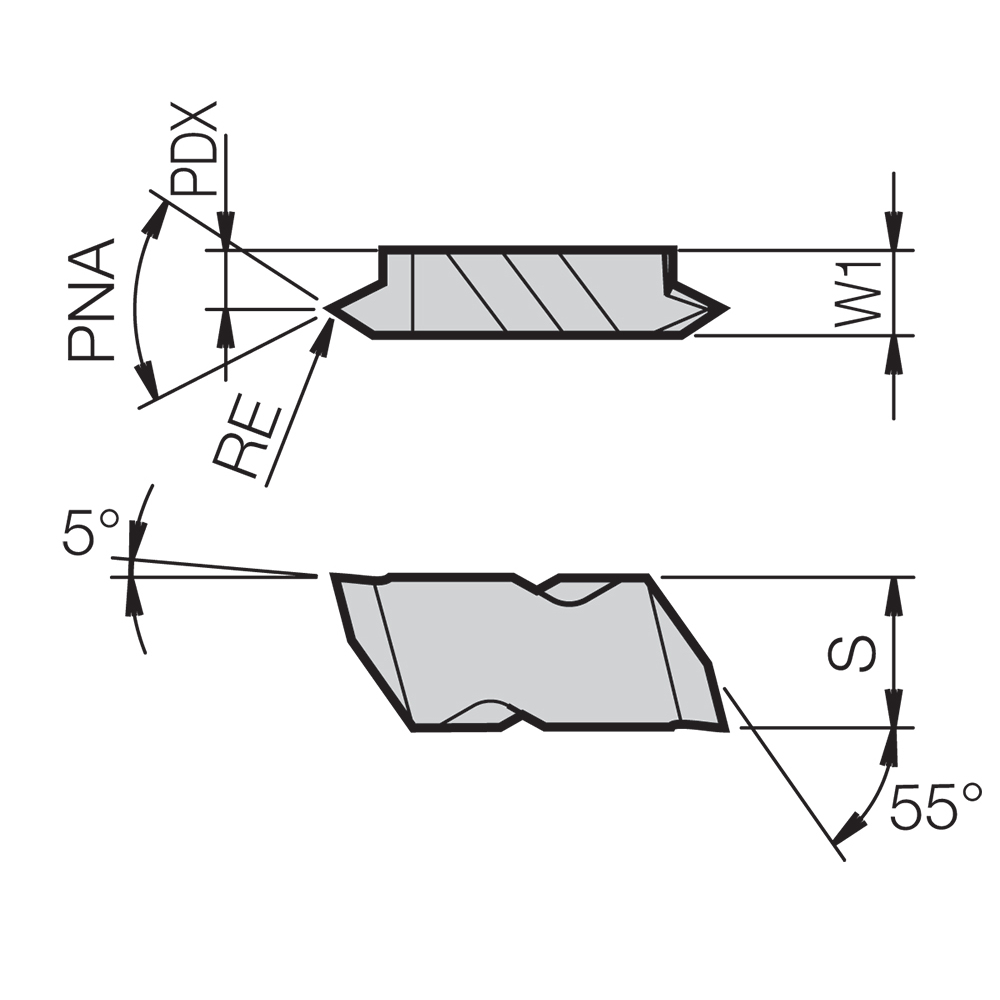

Corner Radius (RE) | 0.003″ | Number of Teeth | 2 |
Insert Thickness (S) | 0.344″ | Profile Included Angle (PNA) | 60 Degrees |
Insert Size | 3 | Series/List # | CERA |
Grade | TN60 | Mounting Style | Clamp |
Coating | TiCN/NbC | Measurement Type | Inch | Metric |

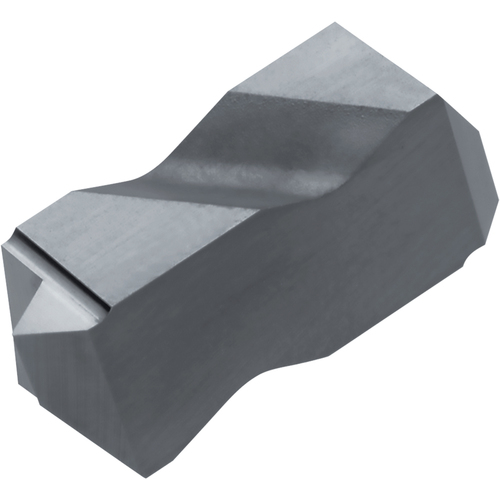

Cutting Edge Material | Cermet | Insert Style | KCTK |
Cutting Position | Internal & External | Coating Process | Uncoated |
