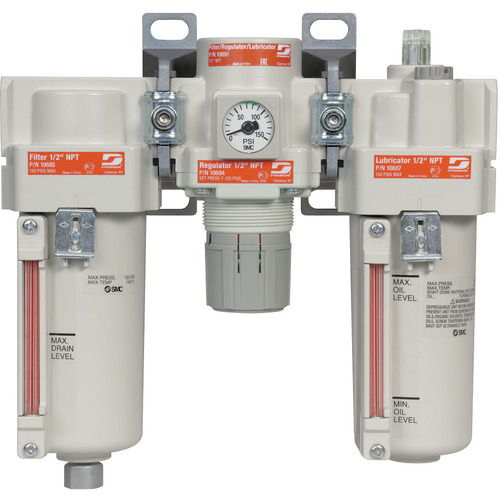

1/2″ NPT Filter-Regulator-Lubricator Assy.

# de Produit PF3110690

UNSPSC: 27131500

BrandName: Dynabrade

ManufacturerNo: 10690

Additional Tariff Surcharge of 7 %

Spécifications du produit

Type

Filter-Regulator-Lubricator

Port Size

1/2″

Type de filetage

NPT

N° du modèle

FRL40

Maximum Pressure

150 PSIG

Remarques

Use air preparation devices, such as Filter-Regulator-Lubricators (FRL Units) are an excellent means of keeping your air supply in top condition, as well as enabling your tools and equipment to operate at their peak performance.
Unit has modular connections with mounting brackets for easy installation.
1/2″ NPT Inlet/Outlet Ports. Also included are bushings(2) to reduce the 1/2″ NPT openings of the Filter-Regulator-Lubricator to 3/8″ NPT.
Filter: Five-micron filter element is standard.
Manually rotate drain plug to discharge contaminants.
Regulator: Compensation built into unit responds faster to changes in incoming pressure and flow.
Built-in dual PSIG|Bar pressure dial gauge.
Lubricator: Built-in check valve permits tool to be filled with oil without having to turn off air pressure. Adjustable oil drop to meter amount of oil into air system.

COO

USA

LocalField10

Poids du conditionnement
