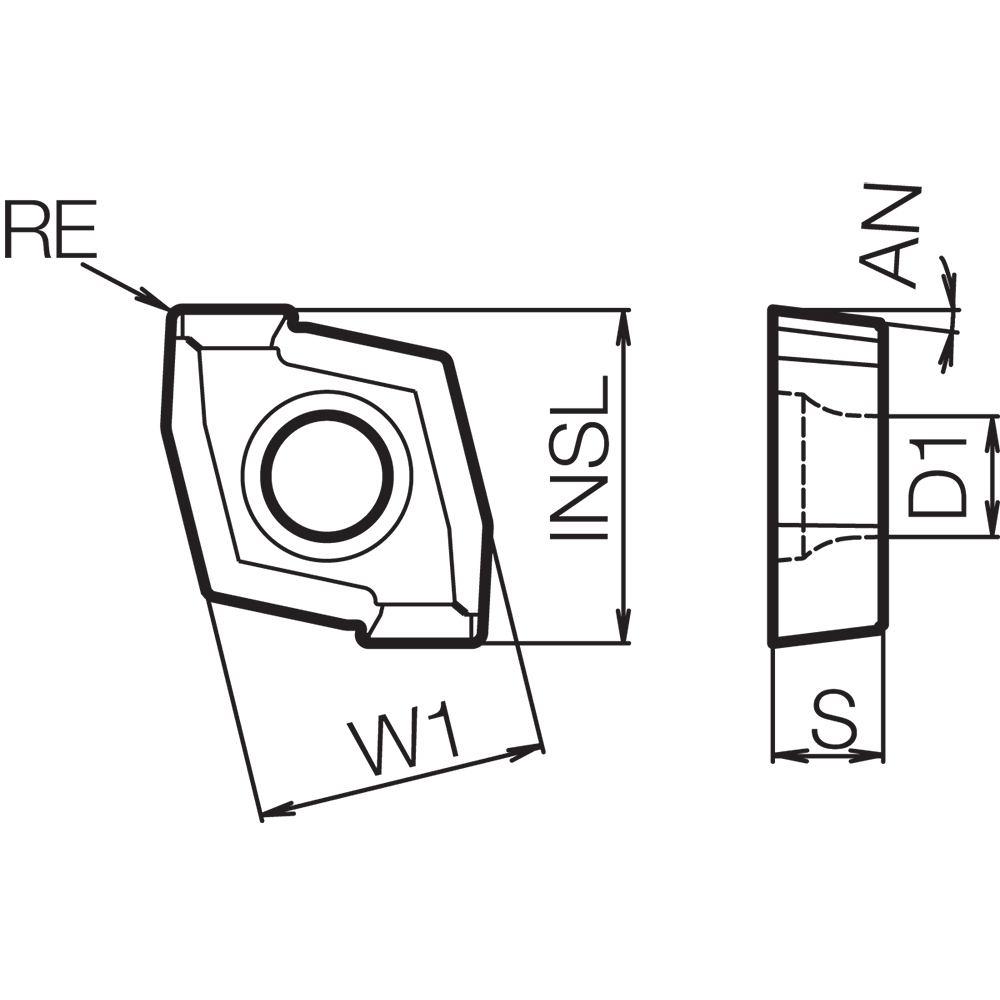

Cutting Edge Length (L) | 0.8976″ | Applicable Material | Aluminum / Non-Ferrous Materials |
Insert Width (W1) | 0.7992″ | Series/List # | DRZ Magic Drill |
Insert Thickness (S) | 1/4″ | Cutting Edge Material | Carbide |
Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 4 |
Fixing Hole Diameter (D1) | 0.256″ | Measurement Type | Inch |
Shape | Irregular | Cutting Direction (HAND) | Right Hand |
Coating | WC/Co | Insert Style | ZCMT |
Grade | KW10 | Insert Size | 200608 |
Application | Drilling |
