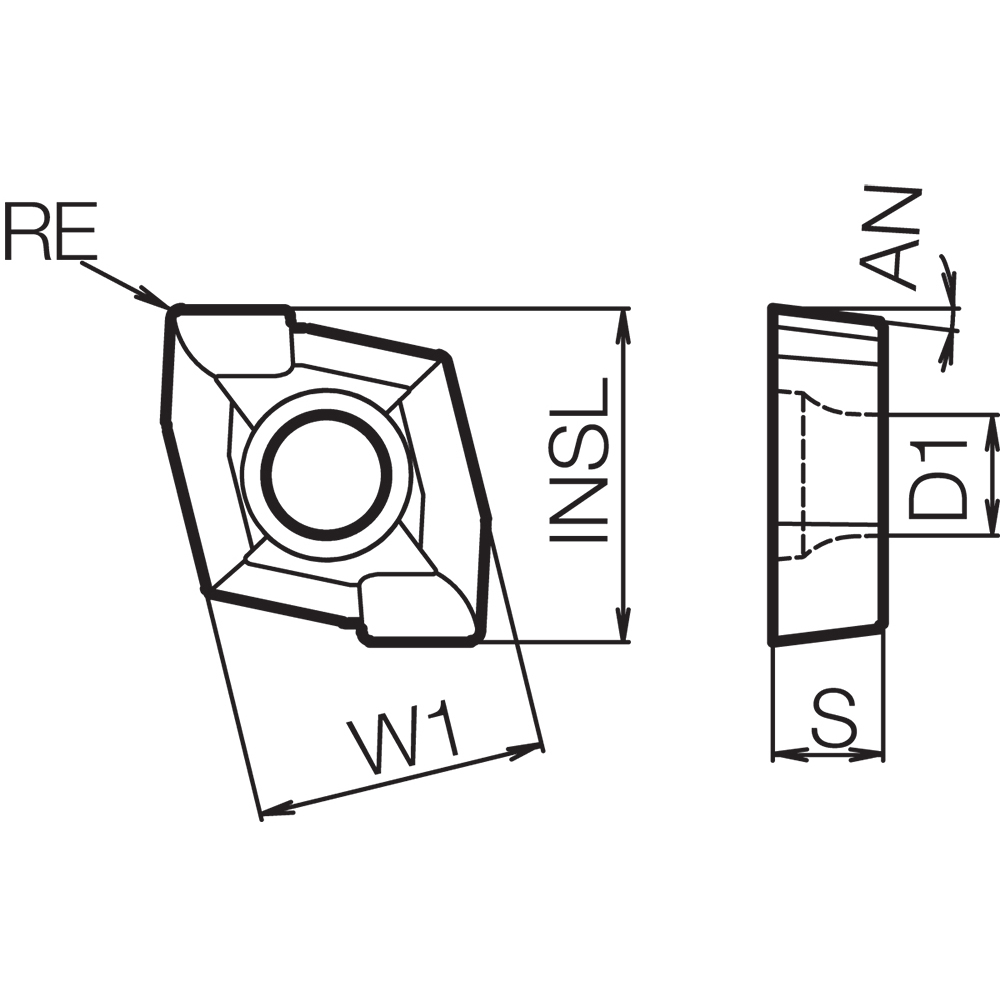

Cutting Edge Length (L) | 0.563″ | Applicable Material | Aluminum / Non-Ferrous Materials |
Insert Width (W1) | 0.5039″ | Chip Breaker Type | SP |
Insert Thickness (S) | 5/32″ | Series/List # | DRZ Magic Drill |
Corner Radius (RE) | 1/64″ | Cutting Edge Material | Carbide |
Fixing Hole Diameter (D1) | 0.22″ | Number of Cutting Edges | 4 |
Shape | Irregular | Measurement Type | Inch |
Coating | WC/Co | Cutting Direction (HAND) | Right Hand |
Grade | KW10 | Insert Style | ZCMT |
Application | Drilling | Insert Size | 12T304 |
