Thread Standard | Metric | UN | Cutting Direction (HAND) | Left Hand |
Thread Pitch (TP) | External 0.75 mm - 3 mm | Internal 1.5 mm - 3.5mm | Application | External Threading | Internal Threading |
Threads per Inch (TPI) | External 8-36 | Internal 7-20 | Applicable Material | Super-Alloys / Titanium |

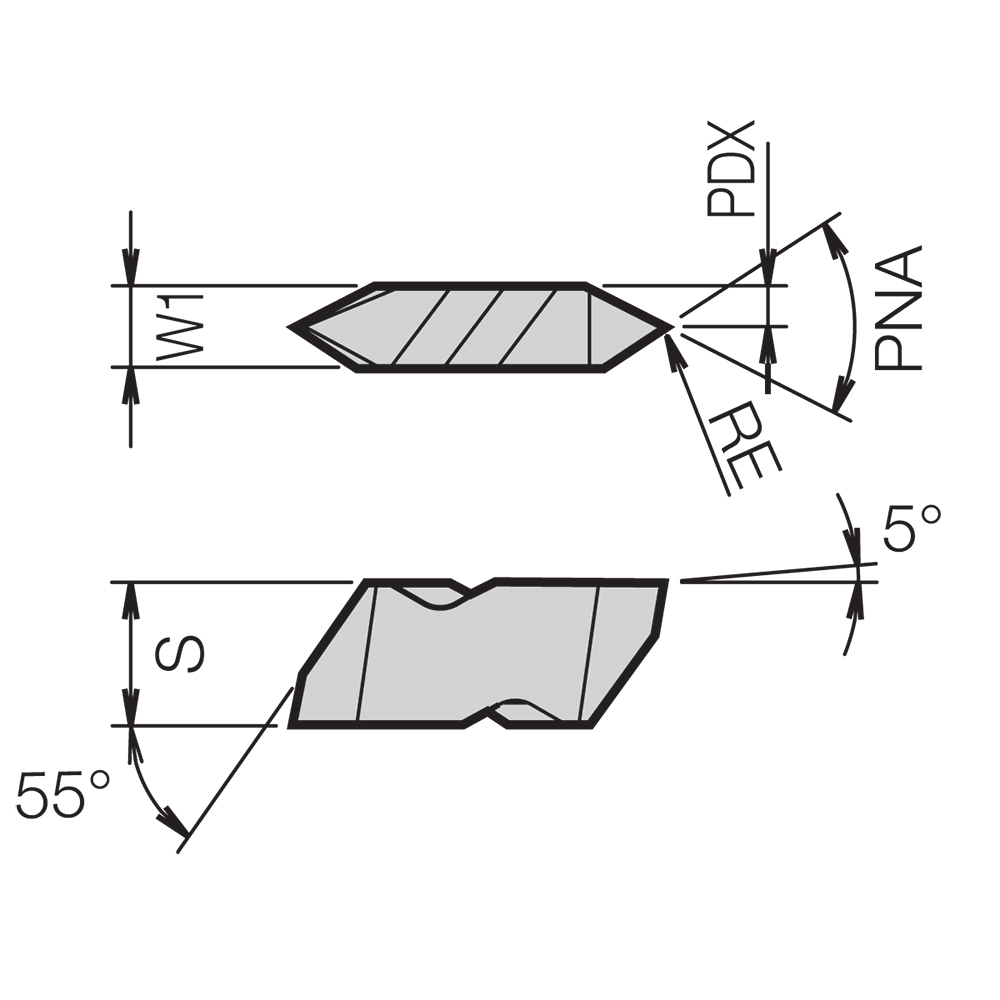

Corner Radius (RE) | 0.004″ | Number of Teeth | 2 |
Insert Thickness (S) | 7/32″ | Profile Included Angle (PNA) | 60 Degrees |
Insert Size | 2 | Series/List # | CERA |
Grade | PR1215 | Mounting Style | Clamp |
Coating | MEGACOAT | Measurement Type | Inch | Metric |
Cutting Edge Material | Carbide | Insert Style | KCTP |
Cutting Position | Internal & External | Coating Process | PVD |
